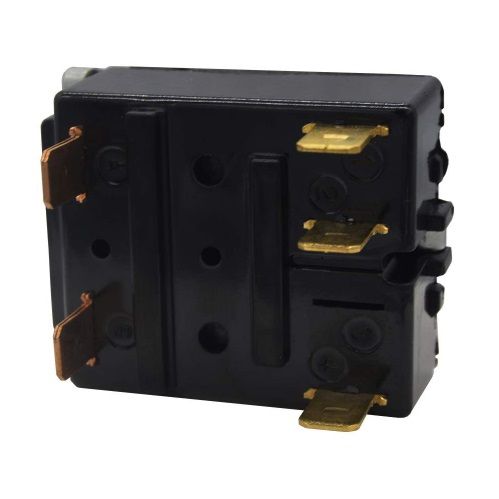

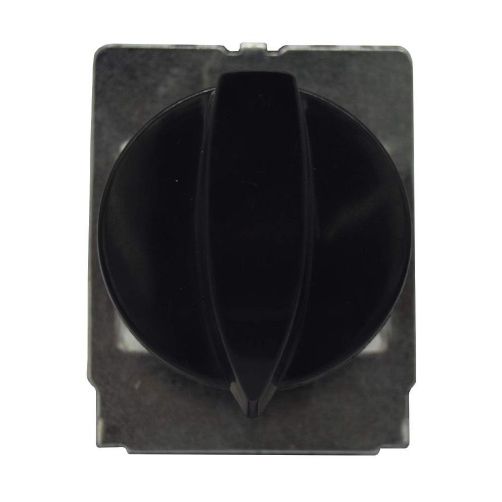

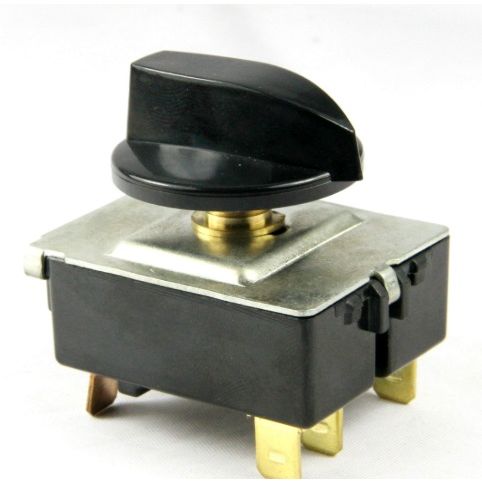

Rotary Switch 4 Positions for Air Conditioner 20A/130VAC 60Hz 5 Pin

En existencia
SKU: 2689
Precio regular $49.95
Modalidades de pago
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Lost item or damage and comes with full manufacturers warranty.
Customer can return an item within 30 days of purchase.
Technical Details
SKU KD-X4
Position 4
Terminals 5 Pin
Rating 20A/130V 60Hz
Operating temperature  -13~185℉ (-25~85ºC)
Contact resistance 100mΩ Max
Insulation resistance 100mΩ Min
Dielectric strength AC 1500V for 1 Min
Electrical life 10000 cycles
Applicable standard IEC61058-1
Material list
Contact leg Brass
Contact   Silver alloy
Terminals Brass
Case Bakelite powder
